6803 Open Bore Adapter

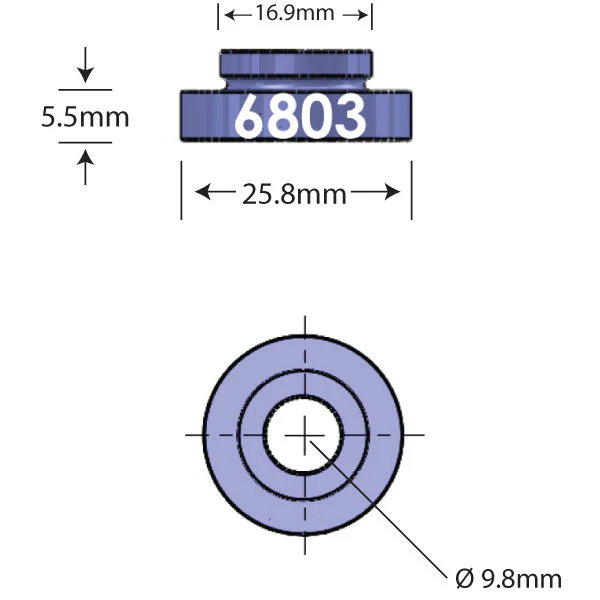

Our 6803 open bore adapter is used to press 26x17 sealed bearings. The adapter is machined with one step at 17mm OD, which fits into the center of the sealed bearing.
- Installs: 6803 bearing
- Inner Step Outer Diameter: 16.9mm
- Outer Diameter: 25.8mm
- Thickness: 5.5mm
- Thru Hole Diameter: 0.387" (9.8mm)
- Inner hole sized to fit 3/8" ACME threaded rod
- Compatible with BP0001 and BP0005
- Machined, red anodized aluminum
- Sold individually (2 drifts required for some installations)
Our 6803 open bore adapter is used to press 26x17 sealed bearings. The adapter is machined with one step at 17mm OD, which fits into the center of the sealed bearing.
- Installs: 6803 bearing
- Inner Step Outer Diameter: 16.9mm
- Outer Diameter: 25.8mm
- Thickness: 5.5mm
- Thru Hole Diameter: 0.387" (9.8mm)
- Inner hole sized to fit 3/8" ACME threaded rod
- Compatible with BP0001 and BP0005
- Machined, red anodized aluminum
- Sold individually (2 drifts required for some installations)
$11.00
6803 Open Bore Adapter—
$11.00
Description
Our 6803 open bore adapter is used to press 26x17 sealed bearings. The adapter is machined with one step at 17mm OD, which fits into the center of the sealed bearing.
- Installs: 6803 bearing
- Inner Step Outer Diameter: 16.9mm
- Outer Diameter: 25.8mm
- Thickness: 5.5mm
- Thru Hole Diameter: 0.387" (9.8mm)
- Inner hole sized to fit 3/8" ACME threaded rod
- Compatible with BP0001 and BP0005
- Machined, red anodized aluminum
- Sold individually (2 drifts required for some installations)
